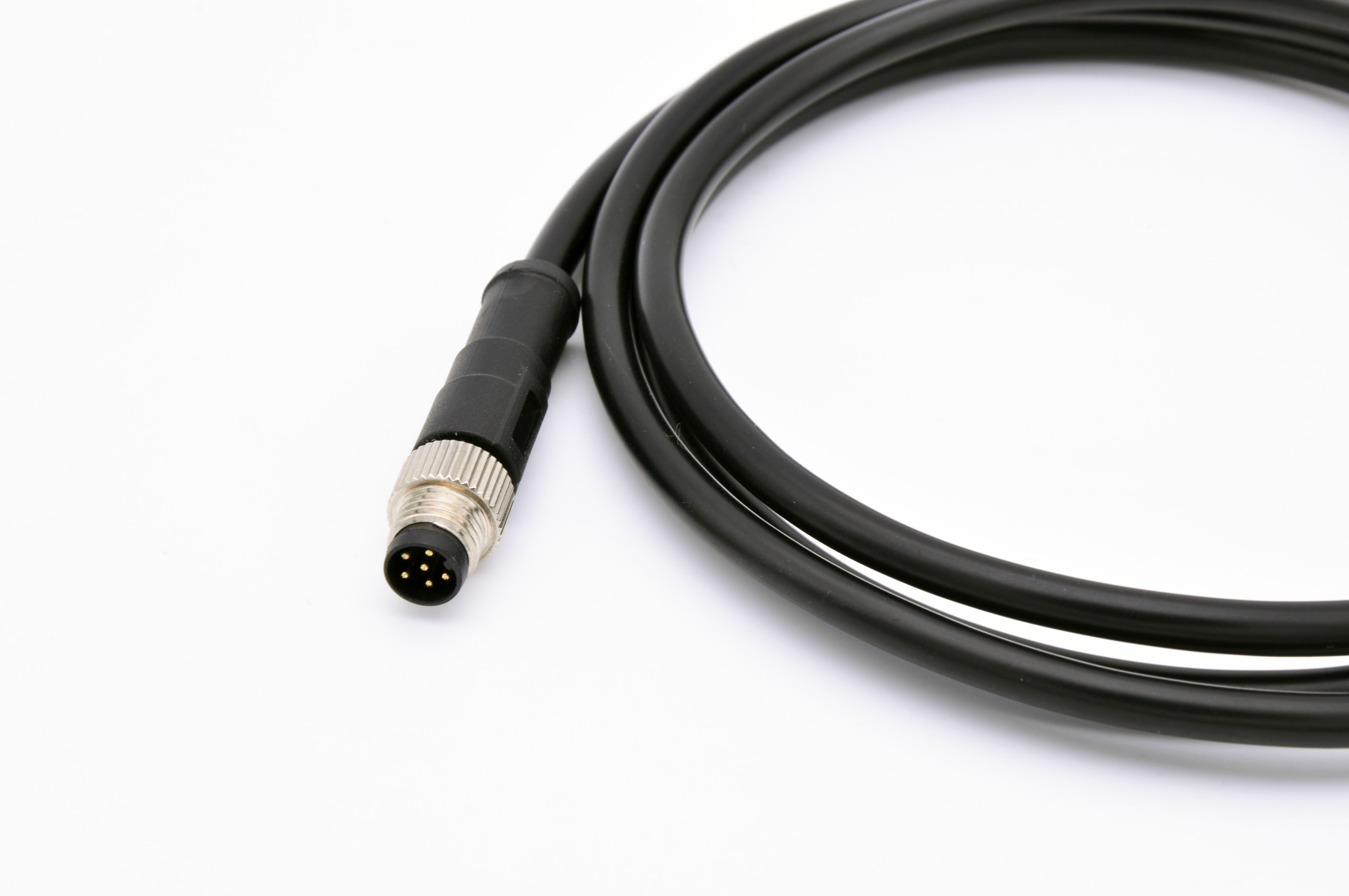

6 Pin M8 Molded Cable, Straight Waterproof Male Plug Connector
  • 6 Pin M8 Molded Cable, Straight Waterproof Male Plug Connector
6 Pin M8 Molded Cable, Straight Waterproof Male Plug Connector

6 Pin M8 Molded Cable, Straight Waterproof Male Plug Connector

Part Number:
M8-M-A-M-06
General Description:
JH-COM is a professional manufacturer of 6 Pin M8 Molded Cable Assembly. The waterproof rate achieves IP 67. The color of the cable jacket is black.

Product Description

M8 connectors conform to IEC 61076-2-101

Product Features:

Products Type: M8 Circular Connector   Waterproof cable

Contact Body Type: Male

Coding Type: A Coding

Plug Type: Straight Type

Contacts: 6 pins

Installation Method: M8 Screw Locking

Part Number:M8-M-A-M-06


Dimensions Drawing



The hole place arranges(Comply with the needle direction)


Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ3.3-5.0mm


Specification

Number of Contacts                   3,         4,        5,               6,       8

Rated Voltage                                      60V                           30V

Rated Current                                       4A                            1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                      0.8±0.03

Wire Gauge                                         24AWG                       26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
