IP 67 M12 Waterproof Connector, Male Front Panel Mount, PG9/ M16x1.5 Thread
  • IP 67 M12 Waterproof Connector, Male Front Panel Mount, PG9/ M16x1.5 Thread
IP 67 M12 Waterproof Connector, Male Front Panel Mount, PG9/ M16x1.5 Thread

IP 67 M12 Waterproof Connector, Male Front Panel Mount, PG9/ M16x1.5 Thread

Part Number:
M12-M-A-P3-04/05/06/08/12
General Description:
JH-COM, as a M12 connector Manufacturer, can supply high quality M12 waterproof connectors for global clients.These products can achieve IP 67/ 68 waterproof rating.

Product Description

M12 connectors conform to IEC 61076-2-104

Product Features:

Products Type: M12 Circular Connector

Contact Body Type: Male

Coding Type: A Coding

Plug Type: straight type

Wiring Method: Soldering

Contacts: 4 pin 5 pin 6 pin 8 pin 12 pin

Installation Method: Front Panel Mount

Part Number:M12-M-A-P3-04/05/08/12  (Pin)

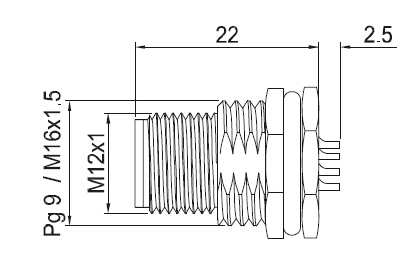

Dimensions Drawing


The hole place arranges(Comply with the needle direction)

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ~+85℃

Cable diameter ≤ φ5.0-8.0mm


Specification

Number of Contacts              2,        3,        4,        5,        6,              8                12

Rated Voltage                                       120V                                     60V             30V

Rated Current                                        4A                                        2A             1.5A

Contact Resistance  <5mΩ

Insulation Resistance  >100MΩ

Pollution Degree  3

Temperature Range  -20℃ to +85℃

Degree of Protection  IP67 when mated

Mating Times  100 cycles

Nom Pin φ                                        1.0±0.03                               0.8±0.03          0.6±0.03

Wire Gauge                                         22AWG                               22AWG              26AWG

Cable Jacket  PVC or PUR

Material of Housing  Brass Nickel Plated

Material of lnsertion  PA66+GF UL94V-0

Material of Contact   Male Brass/Female Phosphor Bronze ,Gold Plated
