M12 X Coding Connector, Cat6A Ethernet Connector, Shielded Female 8 Pos

Product Category:

Products > Circular connector >M12 connectors >M12 X Coding Connector

Part Number:
M12-F-X-A-08

General Description:
This is M12 X Coded Connector with the stainless steel Metal shell that can shield external electromagnetic interference . It conforms to IEC 61076-2-109 GbE ( gigabit Ethernet ) Cat6A Ethernet stantard and can achieve the biggest High-Speed 10Gbps.

Product Description

M12 connectors conform to IEC 61076-2-109 GbE ( gigabit Ethernet )

Product Features：

Products Type: M12 Circular Connector

Contact Body Type: Female

Coding Type: X Coding.

Plug Type: straight type

Wiring Method: Soldering

Contacts: 8 pin

Installation Method: M12 screw mount

Part Number:M12-F-X-A-08

Dimensions Drawing

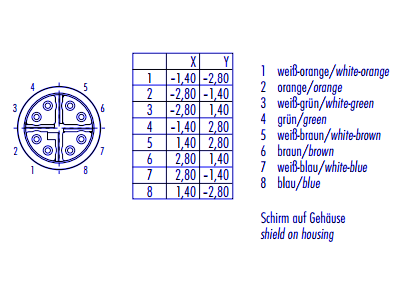

The hole place arranges(Comply with the needle direction)

Material and specifications

Coupling Threaded coupling

Shell material Brass nickle plated

Insert material PA66+30%GF

Contact material copper(silver /gold plated)

Termination Soldering

Mating cycle 500

Temperature Range -25℃ ～+85℃

Cable diameter ≤ φ5.0-8.0mm

Specification

Number of Contacts 8

Rated Voltage 48V

Rated Current 4A

Contact Resistance <5mΩ

Insulation Resistance >100MΩ

Temperature Range -20℃ to +85℃

Degree of Protection IP67 when mated

Mating Times 100 cycles

Material of Contact Male Brass/Female Phosphor Bronze ,Gold Plated
